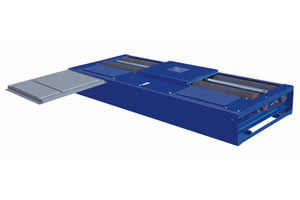

Auto Sideslip, Axle Load, Hanging Frame, Brake Test Line (Four in One)
What is an auto sideslip, axle load, hanging frame, brake test line?
1) CXZ type 4-in-1 auto sideslip, axle load, hanging frame, brake test line consists of axle load and brake system test platform, suspension devices inspection platform and sideslip inspection platform, which perform four different important auto performance inspections with the same test line. This automobile inspection equipment is widely used in auto repair shops, automobile manufacturers and dealers, etc.
2) CXZ type 4-in-1 auto sideslip, axle load, hanging frame, brake test line is particularly used for axle-load rated 2T vehicle braking performance test, measure retarding force of wheel's side-sway fluctuations,
accurate measurement of ratio between brake force and axle load as well as ratio between hand brake force and vehicle mass, and measurement of sideslip and suspension performance. This automobile performance inspection equipment is also equipped with pedal force meter for testing brake pedal force and brake coordination timings.
Characteristics
1. The sideslip inspection platform of CXZ type auto sideslip, axle load, hanging frame, brake test line is designed with releasing function of the lateral force of tyres. Meanwhile, it features compact structure and as a result occupies a small land area.
2. The testing reports can be printed.
3. The body of our auto sideslip, axle load, hanging frame, brake test line is of bended steel plate welded all-round and thus have tremendous strength, easy to install and has a magnificent design.
4. This four in one automobile performance testing line is equipped with high strength, high adhesion coefficient roller which can be used for 200,000 times. The dry adhesion coefficient of the roller is ≥0.9, and the wet coefficient is 0.87. Our auto sideslip, axle load, hanging frame, brake test line can perform normally in raining days.
5. Each suspended plates are supported by four force sensors, which measure wheel and axis load. Electric motor drives eccentric wheel, making the bench flexible in movement, thus accurately test the efficiency of vehicle suspension.
Specification
| Max. axle load | 2T |
| Roller speed | 1.8km/h±10% |
| Braking force test range | 0~600daN×2 |
| Motor power | 1.5kw×2(Y90L-4) AC380V 50HZ |
| Roller diameter × roller length | φ195×700 |
| Roller center spacing | 350mm |
| Dimension | 2380×985×300 |
| Power supply | AC, 380V±10%, 50Hz, three phase five wire |
Welcome to this website constructed by We, a professional automobile performance inspection equipment supplier based in China. This page mainly introduces a four in one test line designed for testing the performance of automobile's sideslip, axle load, hanging frame and brake system, etc. Our company is located in Shanghai, a large international port city in China. Relying on Shanghai's convenient transportation facilities, we are able to deliver the auto inspection tool, auto repair instrument and auto maintenance equipment, etc. you required to any part of the world. All our products are CE certified. Have any need? Contact us!
-
